Exclusive Partner Update — New Product Launch
The Digital Mixer Your Customers Have Been Asking For — Ready to Ship
Dear Partner,
We have good news on two fronts: the MX3210 has entered mass production, and all existing bulk orders are progressing on schedule toward their confirmed delivery dates.
If you've been evaluating the MX3210 for your market — or if your customers have been asking about a high-feature digital mixer at a price point that actually works for retail margins — this is the right moment to act.
The MX3210 is not a spec-sheet product. It is a console built around real-world usability: a 7-inch touchscreen so operators don't need a separate device, browser-based wireless control so any phone or tablet connects instantly, and a panel layout that gets new users mixing in minutes, not hours.
Below, you'll find the full product overview, key specifications, and our OEM & custom branding options — including a custom boot logo screen available from just 50 units.
32 Channels. 7" Touchscreen. Zero App Required.

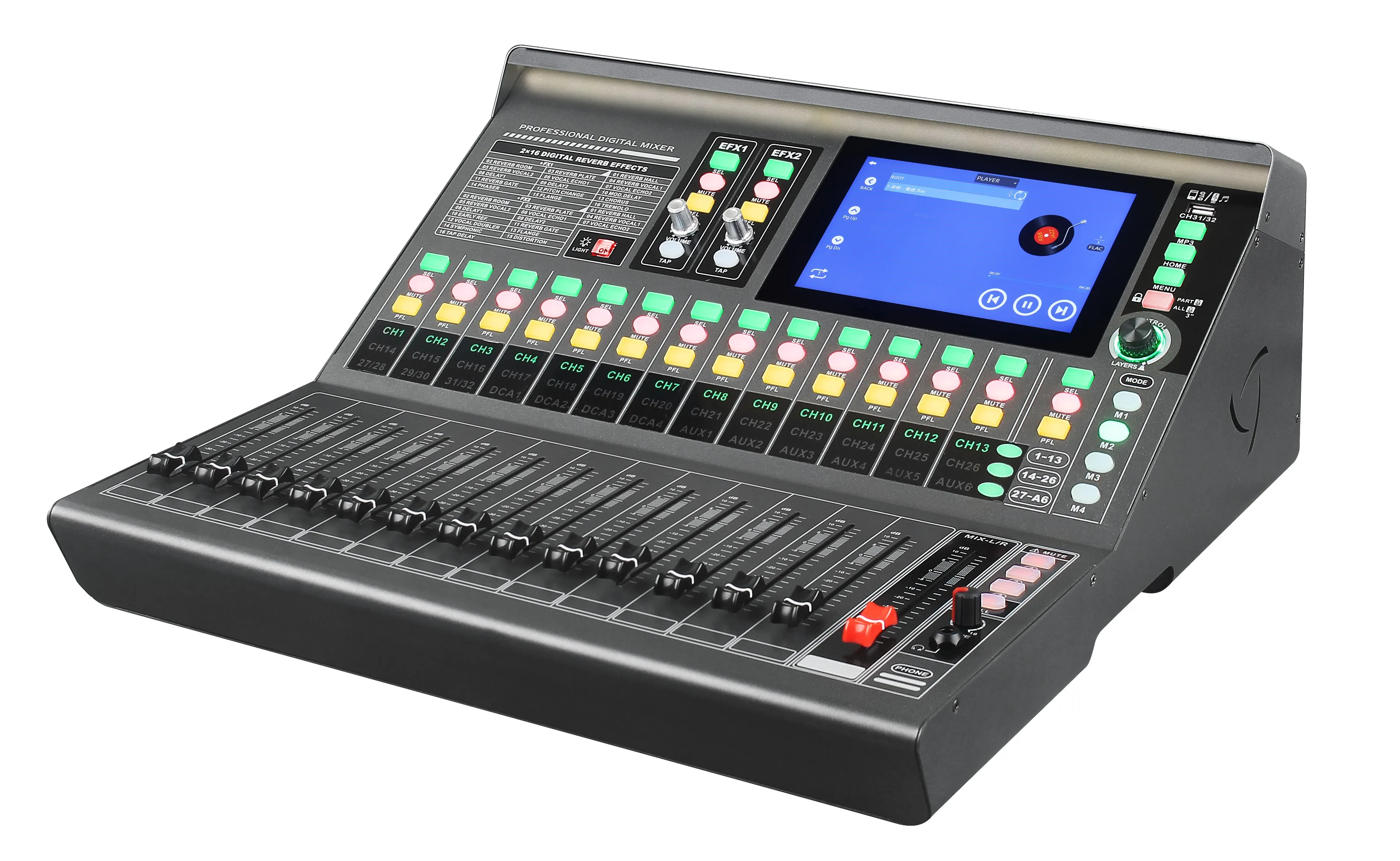

The MX3210 is the flagship model in Elegant Audio's MX Series — a range spanning 12 to 32 input channels on a shared platform, optimized for professional live sound, fixed installation, conferencing, and rental.
The 32-channel configuration (26 mono mic/line + 4 stereo inputs + 2 digital inputs) gives integrators and rental operators the headroom they need for full-band, multi-zone, and broadcast setups — without the price premium of European and American brands.
Every input channel is fully equipped: HPF/LPF filters, 4-band parametric EQ, compressor, noise gate, phase control, and digital gain. Output buses include crossover, EQ, compression, delay, and 3-stage anti-feedback frequency shifting.
Two independent stereo effects engines with 16 factory presets + 16 customizable user presets, plus tap tempo and footswitch support — everything needed for live vocal and instrument processing without outboard gear.
Built for the Field. Designed for the Channel.

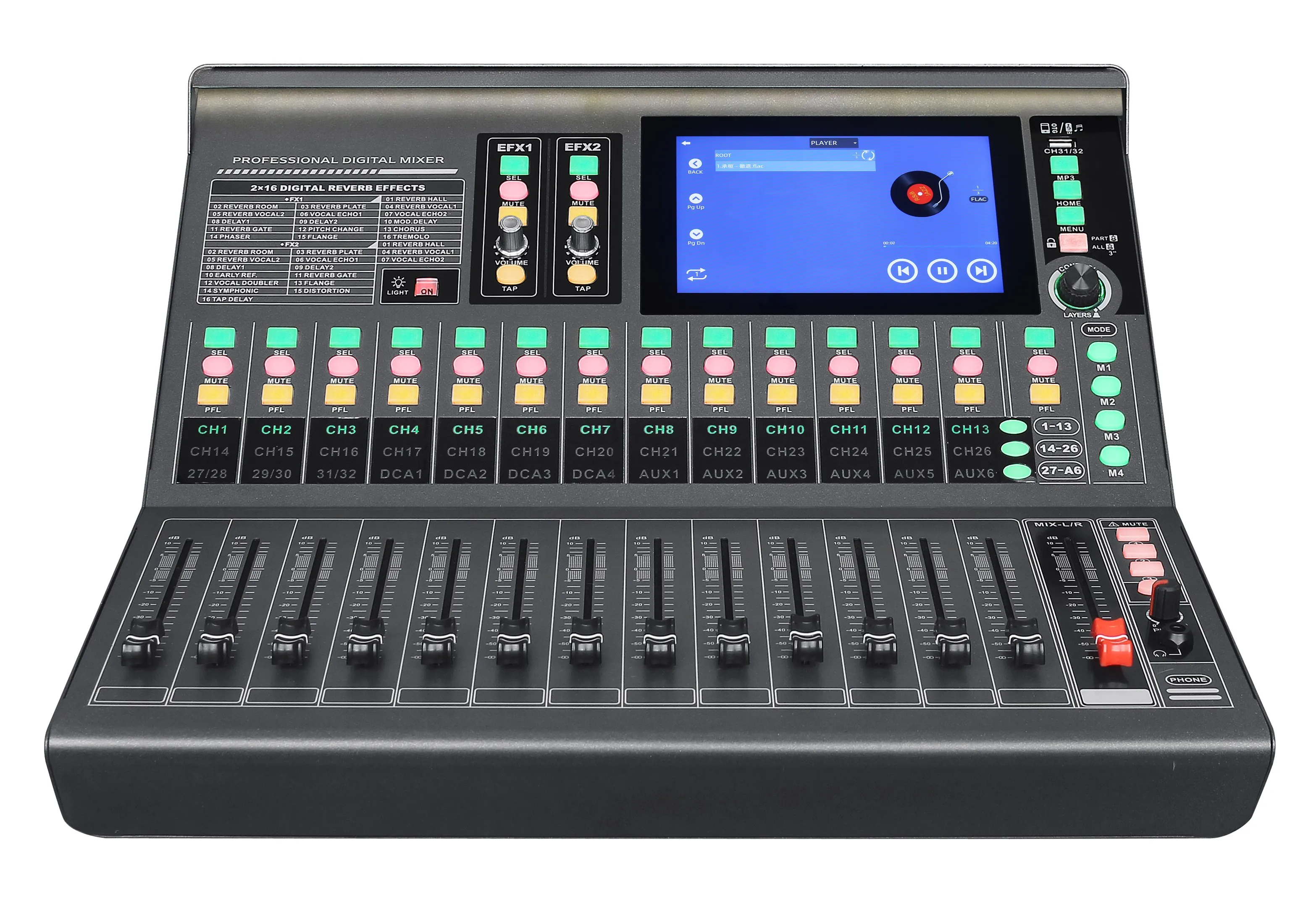

7" HD Touchscreen
1280×800 multi-touch capacitive display. Real-time channel metering, EQ, dynamics, and routing — all visible at a glance without an external device.
Browser Control — No App
Built-in Wi-Fi hotspot and HTML5 web server. Any phone, tablet, or laptop connects instantly. No app download. No OS version conflicts.
2× Independent FX Engines
32 effect modes (16 factory + 16 user-customizable). Dedicated send buses per engine. Tap tempo and footswitch support.
Bluetooth + Wi-Fi Dual Wireless
External BT antenna extends Bluetooth range to 12m for stable audio streaming. Wi-Fi hotspot enables full-system remote control simultaneously.
Dual-Password Security
Admin + custom user password protection. Locks both local panel and remote app simultaneously. Protects settings in public venue installations.
USB Audio Player & Recorder
Plays MP3/WAV from USB drives. Records stereo mix in real time. Also works as a bidirectional USB sound card for direct PC connection.
Panel Backlight Control
Dedicated global backlight switch for night performances, dim stage environments, and low-light equipment rooms. Fader scales and key labels remain readable.
Central Control (RS485)
RS485 port with full command set for mute, level, and mode recall. Integrates cleanly into AMX, Crestron, and custom AV control systems.
Mute Groups & DCA
3 mute groups with one-tap batch control. 4 DCA groups for volume management across input and output channels. Designed for fast scene switching.
16 Scene Presets
Save and recall complete device states. 4 quick-access modes via front panel shortcuts. Ideal for multi-purpose venues with recurring setups.
MX3210 — Full Specification
| Parameter | Specification |
|---|---|
| Model | MX3210 (32-Channel Configuration) |
| Input Channels | 32 total: 26 Mic/Line (XLR+TRS) + 4 Stereo (TRS) + 2 Digital (USB / Optical / S/PDIF) |

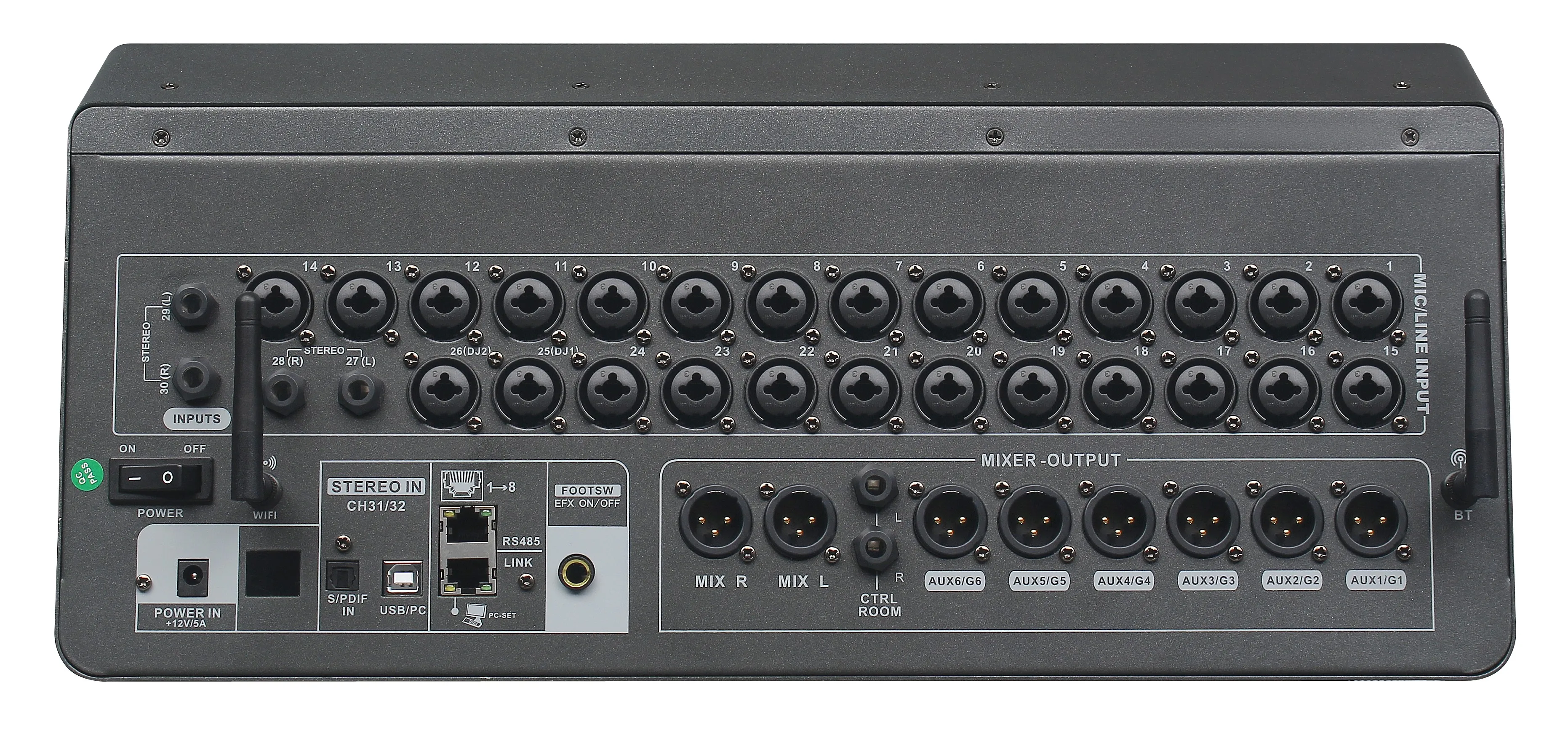

| Output Channels | Stereo Main L/R (XLR) + 6× AUX (XLR) + Control Room Monitor + Headphone |
| Touchscreen | 7-inch, 1280×800, Multi-touch Capacitive |
| Wireless Control | Built-in Wi-Fi hotspot + HTML5 browser interface (iOS / Android / Windows / macOS / Linux) |
| Bluetooth | External antenna, up to 12m stable range |
| Input Processing | HPF/LPF, 4-band PEQ (20Hz–20kHz, Q: 0.05–15, Gain: ±20dB), Compressor, Noise Gate, Phase, Digital Gain |
| Output Processing | Crossover (Butterworth / Linkwitz-Riley), PEQ, Compressor, Delay (0–735ms), 3-stage Anti-feedback |
| Compressor | Threshold: –60 to 0dB | Ratio: 1:1 to 1000:1 | Attack: 1–120ms | Release: 10–4000ms | Makeup: ±20dB |
| Effects | 2× independent stereo FX engines | 32 modes (16 factory + 16 user) | Tap Tempo | Footswitch |
| DCA Groups | 4× DCA (input + output management) |
| Mute Groups | 3× independent mute groups with one-tap batch control |
| Scene Presets | 16 presets (4 quick-access via front panel M1–M4) |
| USB Functions | Playback (MP3/WAV) + Stereo Recording + USB Sound Card (bidirectional PC audio) |
| Digital I/O | S/PDIF optical input, USB-B sound card port |
| Control Ports | RS485 (central control) + RJ45 PC debug port + Footswitch jack |
| Frequency Response | 20Hz – 20kHz (±0.5dB) |
| THD | <0.01% @ –20dBFS, 1kHz |
| S/N Ratio | –107dB |
| Dynamic Range | Crosstalk: –96dB @ +4dBu, 1kHz |
| Mic Gain Range | –20dB to +70dB |
| Phantom Power | +48V, independent per channel, digital control |
| Sampling Rate | 48kHz / 24-bit |
| Signal Delay | <2ms |
| Power | <60W | 100–240V AC | 47–63Hz |
| Dimensions (32CH) | 450mm (L) × 470mm (W) × 200mm (H) |
| Weight (32CH) | 8.5 kg |
| Operating Temperature | –20°C to +55°C |
| Security | Dual-password lock (Admin + User), panel + remote synchronized |
Your Brand. Our Factory. Lowest MOQ in Class.
We understand that building a brand in your market takes more than reselling. That's why the MX3210 is available with one of the most accessible OEM programs in the industry — no high-volume commitment required to get your logo on the product.
★ MX3210 Order & OEM Programs
Existing bulk orders: On schedule. Your confirmed delivery timeline is unchanged. We will follow up individually with shipping updates.
New bulk orders — MOQ: 10 pcs. Standard configuration. Ideal for distributors entering the digital mixer category or expanding an existing line. Contact us for tiered pricing.
Custom boot screen with your company logo — MOQ: 50 pcs. Your brand appears on the 7-inch touchscreen at startup. No tooling fees. No hardware modifications required. Just your logo, professionally integrated into the firmware boot sequence.
Full private label / OEM program available for established distributors. Custom branding, packaging, and documentation. Contact us directly to discuss scope and volume.
MX Series — One Platform, Five Configurations
All MX Series models share the same signal processing architecture, control interface, and browser-based wireless system. Your customers can start small and scale up — same workflow, same ecosystem.
| Model | Total Inputs | Mic Inputs | Stereo In | Dimensions | Weight |
|---|---|---|---|---|---|
| MX1208 | 12 CH | 8 Mic | 2 Stereo | 338×420×200mm | 6 kg |
| MX1612 | 16 CH | 12 Mic | 2 Stereo | 450×420×200mm | 7 kg |
| MX2016 | 20 CH | 16 Mic | 2 Stereo | 450×420×200mm | 7.5 kg |
| MX2620 | 26 CH | 20 Mic | 4 Stereo | 450×470×200mm | 8 kg |
| MX3210 | 32 CH | 26 Mic | 4 Stereo | 450×470×200mm | 8.5 kg |
12 Years. One Focus. Your Margin.
We are a professional audio equipment manufacturer based in Enping, Guangdong — one of the world's highest-concentration pro audio production regions. Since 2012, we have supplied distributors, rental companies, and AV integrators across Asia, Europe, the Middle East, and Latin America.
We don't compete on the lowest possible price. We compete on the right combination of product quality, supply chain reliability, and channel support — because we understand that what keeps your business growing is not the first order, but the second, third, and tenth.
Our product development process is driven by real market feedback from our distribution network — which is why the MX3210 was designed around the specific pain points that make digital mixers hard to sell and support: complexity, app dependency, and unstable wireless control.
Request Pricing & Sample Info
Whether you're placing a first order, confirming an existing bulk delivery, or evaluating OEM options — we respond to every serious inquiry within 24 hours.
Request Quote → OEM Logo Inquiry →Anthony Wu · CEO, Elegant Audio
📱 WhatsApp: [+86 13822326488]
Enping Elegant Audio Equipment Co., Ltd. · Enping, Guangdong, China
